China Customized Vertical Fire Fighting Pump Manufacturers, Suppliers and Factory

Your Professional Vertical Fire Fighting Pump Supplier

Shanghai Tengsheng Pump Manufacturing Co., Ltd. is a cross-regional high-tech machinery and equipment manufacturing enterprise mainly engaged in the manufacturing and sales of pumps, fluid equipment, and pump control equipment. Fire pumps, multi-stage fire pumps, end-suction pumps, long-shaft fire pumps, diesel engine fire/emergency pump sets, pipeline pumps, TD circulating pumps, self-priming pumps, fire control cabinets, fire pressure stabilization equipment, portable diesel engine pumps, submersible sewage pumps, high-efficiency negative-pressure intelligent variable frequency water supply equipment, etc.

Vertical Single-Stage Fire Pump
The vertical fire pump developed by Shanghai Tengsheng Pump Manufacturing is a core piece of equipment specially engineered for pressure boosting and water supply in fire emergency scenarios. This

view more
Vertical Centrifugal Pipeline Pump
The XBD Series Vertical Centrifugal Pipeline Pump manufactured by Tengsheng Pump Manufacturing is a core piece of equipment in the field of fire water supply. Our Vertical Centrifugal Pipeline Pump

view more

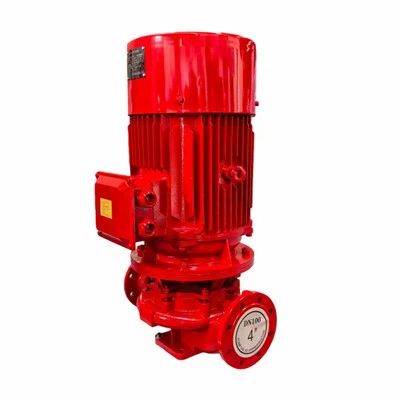

High-Flow Vertical Fire Pump
Our High-Flow Vertical Fire Pump is specifically engineered for large-scale fire protection systems in industrial parks and super-large commercial complexes.

view more
High-head Vertical Fire Pump
Our high-head vertical fire pump fire pump that is vertically installed and can generate a relatively high lift to meet the water supply needs of fire - fighting systems at high altitudes or over

view more
Fire Booster Pump
Our fire booster pump is an auxiliary pressurization device in the fire water supply system. Its main function is to automatically start when the system pipe network pressure is lower than the

view more
Indoor and Outdoor Fire Hydrant Sprinkler Pump Set
Our Indoor and Outdoor Fire Hydrant Sprinkler Pump Set is a complete fire water supply system that integrates main fire pumps, stabilizing and boosting devices, control cabinets, pipeline

view more
Emergency Fire Pump
The single-stage hydraulic model design of our emergency fire pump covers a flow rate of 5-150L/s and a head range of 30-130m, accurately matching the needs of local fire extinguishing in

view more
Building Vertical Fire Pump
Our Building Vertical Fire Pump is equipped with a specialized intelligent linkage start system for building fire protection, perfectly adapted to the building fire control center. It supports three

view more
Fire Horizontal Electric Centrifugal Pump
Fire water supply requires stability and sufficient power, and reliable adaptation is even more necessary under complex working conditions - our Fire Horizontal Electric Centrifugal Pump is

view more

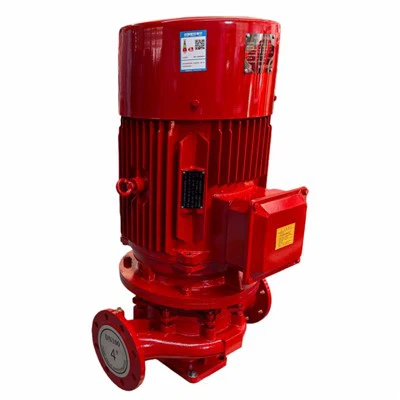

Vertical Pipeline Fire Pump
Our XBD Series Vertical Pipeline Fire Pump is designed and manufactured in strict compliance with national standards and the international standard ISO 28, and has obtained the mandatory 3CF product

view more

why choose us

Excellent Customer Service

We are committed to building long-term partnerships by providing reliable products, responsive service, and professional technical support. Together with our global partners, we strive to contribute to the advancement and sustainable development of the pump industry.

Quality & Reliability

Quality is at the core of everything we do. We operate under strict quality control procedures and use advanced testing systems to ensure every product delivers stable performance, safety, and long service life. From raw materials to final inspection, every production stage is carefully monitored to guarantee product reliability.

Innovation & Technology

Driven by continuous innovation, Tengsheng Pump invests in product development, manufacturing improvement, and intelligent control technology. Our experienced engineering team works closely with industry experts to optimize product performance and provide efficient solutions for customers worldwide.

Our Commitment

We are dedicated to building long-term partnerships through quality products, professional service, and customer-focused solutions. Tengsheng Pump looks forward to cooperating with global partners and creating sustainable value together.

Types of Vertical Fire Fighting Pump

Vertical Turbine Pumps (VTP):

Often used when the water source (tank, pond, or well) is located below the pump, requiring suction lift. They are highly reliable for industrial and large-scale applications.

Vertical In-Line Pumps:

Designed to be installed directly in the piping system to save space. These are ideal for applications with limited floor space, often used for smaller systems or as jockey pumps.

Vertical Multi-Stage Pumps:

Feature multiple impellers, allowing them to produce very high pressures, suitable for high-rise buildings and demanding fire protection systems.

Vertical Split-Case Pumps:

Rare but used for specialized, high-capacity scenarios where easy access to internal parts is needed, similar to horizontal split-case pumps but oriented vertically.

Specifications

Serial Number	Model	Rated Flow Rate L/S	Rated Head(m)	Speed	Motor Power	Serial Number	Model	Rated Flow Rate L/S	Rated Head(m)	Speed	Motor Power
1	XBD3.2/5G-TSL	5	32	2900	4	27	XBD3.2/20G-TSL	20	32	2900	15
2	XBD4.0/5G-TSL		40	2900	7.5	28	XBD3.8/20G-TSL		38	2900	18.5
3	XBD5.0/5G-TSL		50	2900	7.5	29	XBD4.5/20G-TSL		45	2900	18.5
4	XBD6.0/5G-TSL		60	2900	11	30	XBD5.2/20G-TSL		52	2900	22
5	XBD7.0/5G-TSL		70	2900	11	31	XBD6.0/20G-TSL		60	2900	22
6	XBD8.0/5G-TSL		80	2900	15	32	XBD7.0/20G-TSL		70	2900	30
7	XBD3.2/10G-TSL	10	32	2900	7.5	33	XBD8.0/20G-TSL		80	2900	37
8	XBD4.0/10G-TSL		40	2900	11	34	XBD9.0/20G-TSL		90	2900	45
9	XBD5.0/10G-TSL		50	2900	15	35	XBD10.0/20G-TSL		100	2900	45
10	XBD6.0/10G-TSL		60	2900	15	36	XBD11.0/20G-TSL		110	2900	55
11	XBD7.0/10G-TSL		70	2900	18.5	37	XBD12.5/20G-TSL		125	2900	75
12	XBD8.0/10G-TSL		80	2900	22	38	XBD13.0/20G-TSL		130	2900	75
13	XBD9.0/10G-TSL		90	2900	30	39	XBD14.0/20G-TSL		140	2900	75
14	XBD10.0/10G-TSL		100	2900	30	40	XBD15.0/20G-TSL		150	2900	90
15	XBD11.0/10G-TSL		110	2900	37	41	XBD3.2/25G-TSL	25	32	2900	15
16	XBD3.2/15G-TSL	15	32	2900	7.5	42	XBD3.8/25G-TSL		38	2900	18.5
17	XBD4.0/15G-TSL		40	2900	11	43	XBD4.5/25G-TSL		45	2900	18.5
18	XBD5.0/15G-TSL		50	2900	15	44	XBD5.0/25G-TSL		50	2900	22
19	XBD5.5/15G-TSL		55	2900	15	45	XBD6.0/25G-TSL		60	2900	22
20	XBD6.0/15G-TSL		60	2900	15	46	XBD7.0/25G-TSL		70	2900	30
21	XBD7.0/15G-TSL		70	2900	18.5	47	XBD8.0/25G-TSL		80	2900	37
22	XBD8.0/15G-TSL		80	2900	22	48	XBD9.0/25G-TSL		90	2900	45
23	XBD9.0/15G-TSL		90	2900	30	49	XBD10.0/25G-TSL		100	2900	45
24	XBD10.0/15G-TSL		100	2900	30	50	XBD11.0/25G-TSL		110	2900	55
25	XBD11.0/15G-TSL		110	2900	37	51	XBD12.5/25G-TSL		125	2900	75
26	XBD12.0/15G-TSL		120	2900	45	52	XBD13.0/25G-TSL		130	2900	75
53	XBD14.0/25G-TSL	25	140	2900	75	82	XBD15.0/35G-TSL	35	150	2900	110
54	XBD15.0/25G-TSL	25	150	2900	90	83	XBD3.2/40G-TSL	40	32	2900	22
55	XBD3.2/30G-TSL	30	32	2900	15	84	XBD3.8/40G-TSL		38	2900	30
56	XBD3.8/30G-TSL		38	2900	18.5	85	XBD4.5/40G-TSL		45	2900	30
57	XBD4.5/30G-TSL		45	2900	18.5	86	XBD5.0/40G-TSL		50	2900	37
58	XBD5.0/30G-TSL		50	2900	22	87	XBD6.0/40G-TSL		60	2900	37
59	XBD6.0/30G-TSL		60	2900	30	88	XBD7.0/40G-TSL		70	2900	45
60	XBD7.0/30G-TSL		70	2900	30	89	XBD8.0/40G-TSL		80	2900	55
61	XBD8.0/30G-TSL		80	2900	37	90	XBD9.0/40G-TSL		90	2900	55
62	XBD9.0/30G-TSL		90	2900	45	91	XBD10.0/40G-TSL		100	2900	75
63	XBD10.0/30G-TSL		100	2900	45	92	XBD11.0/40G-TSL		110	2900	75
64	XBD11.0/30G-TSL		110	2900	55	93	XBD12.5/40G-TSL		125	2900	90
65	XBD12.5/30G-TSL		125	2900	75	94	XBD13.0/40G-TSL		130	2900	90
66	XBD13.0/30G-TSL		130	2900	75	95	XBD14.0/40G-TSL		140	2900	90
67	XBD14.0/30G-TSL		140	2900	90	96	XBD15.0/40G-TSL		150	2900	110
68	XBD15.0/30G-TSL		150	2900	90	97	XBD3.2/50G-TSL	50	32	2900	22
69	XBD3.2/35G-TSL	35	32	2900	22	98	XBD3.8/50G-TSL		38	2900	30
70	XBD3.8/35G-TSL		38	2900	30	99	XBD4.5/50G-TSL		45	2900	30
71	XBD4.5/35G-TSL		45	2900	30	100	XBD5.0/50G-TSL		50	2900	37
72	XBD5.0/35G-TSL		50	2900	37	101	XBD6.0/50G-TSL		60	2900	45
73	XBD6.0/35G-TSL		60	2900	37	102	XBD7.0/50G-TSL		70	2900	55
74	XBD7.0/35G-TSL		70	2900	45	103	XBD8.0/50G-TSL		80	2900	75
75	XBD8.0/35G-TSL		80	2900	55	104	XBD9.0/50G-TSL		90	2900	75
76	XBD9.0/35G-TSL		90	2900	55	105	XBD10.0/50G-TSL		100	2900	90
77	XBD10.0/35G-TSL		100	2900	75	106	XBD11.0/50G-TSL		110	2900	90
78	XBD11.0/35G-TSL		110	2900	75	107	XBD12.5/50G-TSL		125	2900	110
79	XBD12.5/35G-TSL		125	2900	90	108	XBD13.0/50G-TSL		130	2900	110
80	XBD13.0/35G-TSL		130	2900	90	109	XBD14.0/50G-TSL		140	2900	110
81	XBD14.0/35G-TSL		140	2900	90	110	XBD15.0/50G-TSL		150	2900	110
111	XBD4.0/60G-TSL	60	40	2900	30	140	XBD5.0/100G-TSL	100	50	2900	90
112	XBD5.0/60G-TSL		50	2900	37	141	XBD6.0/100G-TSL		60	2900	110
113	XBD6.0/60G-TSL		60	2900	45	142	XBD7.0/100G-TSL		70	2900	160
114	XBD7.0/60G-TSL		70	2900	55	143	XBD8.0/100G-TSL		80	2900	160
115	XBD8.0/60G-TSL		80	2900	75	144	XBD9.0/100G-TSL		90	2900	160
116	XBD9.0/60G-TSL		90	2900	75	145	XBD10.0/100G-TSL		100	2900	160
117	XBD10.0/60G-TSL		100	2900	90	146	XBD11.0/100G-TSL		110	2900	160
118	XBD11.0/60G-TSL		110	2900	90	147	XBD6.0/110G-TSL	110	60	2900	110
119	XBD12.5/60G-TSL		125	2900	110	148	XBD7.0/110G-TSL		70	2900	132
120	XBD13.0/60G-TSL		130	2900	110	149	XBD7.4/110G-TSL		74	2900	132
121	XBD14.0/60G-TSL		140	2900	110
122	XBD15.0/60G-TSL		150	2900	110
123	XBD5.0/70G-TSL	70	50	2900	37
124	XBD6.0/70G-TSL		60	2900	55
125	XBD7.0/70G-TSL		70	2900	75
126	XBD8.0/70G-TSL		80	2900	75
127	XBD9.0/70G-TSL		90	2900	90
128	XBD10.0/70G-TSL		100	2900	90
129	XBD11.0/70G-TSL		110	2900	110
130	XBD12.5/70G-TSL		125	2900	110
131	XBD13.0/70G-TSL		130	2900	110
132	XBD15.0/70G-TSL		140	2900	132
133	XBD6.0/80G-TSL	80	60	2900	90
134	XBD7.0/80G-TSL		70	2900	90
135	XBD8.0/80G-TSL		80	2900	110
136	XBD9.0/80G-TSL		90	2900	110
137	XBD10.0/80G-TSL		100	2900	132
138	XBD11.0/80G-TSL		110	2900	132
139	XBD12.5/80G-TSL		125	2900	160

Key Features of Vertical Fire Fighting Pump

High Efficiency:

The multistage design allows these pumps to achieve high pressure and flow rates, making them ideal for firefighting needs.

Space-Saving Design:

The vertical orientation requires less floor space compared to horizontal pumps, making it suitable for installations in tight areas.

Durability:

Constructed from high-quality materials, these pumps are built to withstand harsh conditions and ensure longevity.

Fire Horizontal Electric Centrifugal Pump

Versatility:

Suitable for various applications beyond firefighting, including irrigation and water supply in industrial settings.

Maintenance of Vertical Fire Fighting Pump

Routine Inspections:

Check seals, bearings, and impellers for wear.

Lubrication:

Ensure bearings are adequately lubricated to minimize friction.

Alignment Checks:

Maintain proper alignment between the motor and pump for efficient operation.

When maintained properly, these pumps offer a long lifespan and reliable operation, reducing downtime and replacement costs.

Applications of Vertical Fire Fighting Pump

Sprinkler Systems:

Deliver high-pressure water to extensive sprinkler networks and ensure uniform distribution across multiple zones.

Hydrant Systems:

Provide sufficient pressure to outdoor fire hydrants for firefighting personnel.

Standpipe Systems:

Support high-rise building standpipe systems, ensuring water reaches upper floors effectively.

Foam-based Systems:

Used in industrial facilities where foam is required for fire suppression, particularly in oil and gas applications.

FAQ

Q: What is the most common type of fire pump?

A: The two most common types of fire pumps are the horizontal-shaft centrifugal pump and the vertical-shaft turbine pump. The horizontal shaft centrifugal pump is one in which the pressure is developed by impelling water outward from a center of rotation. The impeller is mounted on a horizontal shaft.

Q: How to calculate fire pump size?

A: For example, if you have a 40,000-square-foot building that is all ordinary group 1, the calculation would be 1,500 x 0.15 (density) = 225 + 250 (hose demand) = 475 gpm total for the fire pump. If the structure has multiple hazards, the hazard with the highest gpm calculation dictates the pump size.

Q: How to select a fire fighting pump?

A: Key Factors in Fire Pump Selection
Determine whether the system uses a municipal supply, storage tank, or underground well. This affects the pump type—end suction, split case, or vertical turbine. Calculate the required flow (GPM or L/min) and pressure (PSI or bar) based on the fire protection design.

Q: What is the rpm of a fire pump?

A: What Is Fire Pump RPM? Fire pump RPM refers to the rotational speed of the pump shaft, typically driven by an electric motor or diesel engine. Standard fire pump speeds usually include: 1500 RPM.

Q: How to properly size a fire pump?

A: The annex of NFPA 20 suggests that a fire pump should optimally be sized to be at 90% to 140% of the rated flow when choosing the flow, and is absolutely limited to 150% of rated flow.

We're well-known as one of the leading vertical fire fighting pump manufacturers and suppliers in China. We warmly welcome you to buy customized vertical fire fighting pump at competitive price from our factory. If you have any enquiry about cooperation, please feel free to email us.
