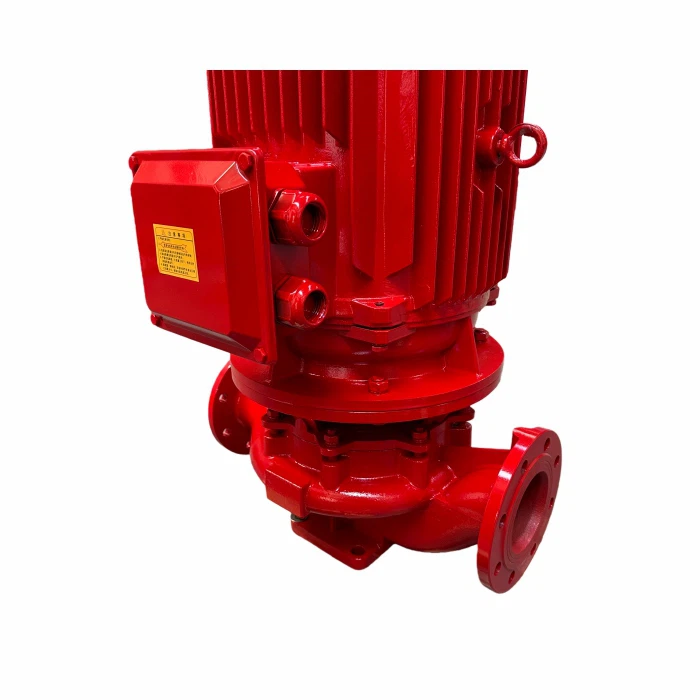

Our high-head vertical fire pump fire pump that is vertically installed and can generate a relatively high lift to meet the water supply needs of fire - fighting systems at high altitudes or over long distances.
Category
Vertical Fire Fighting Pump
Share to
Description

Product Overview



The XBD-L High Head Vertical Inline Fire Pump is a centrifugal fire pump designed for reliable water supply in fire protection systems where elevated discharge pressure is required. Its compact vertical in-line structure with coaxial motor mounting saves installation space while providing stable high-head flow for high-rise buildings, commercial complexes, industrial plants, and municipal fire protection applications.



With flow rates from 5 to 150 L/s and heads from 32 to 150 m, the pump can be configured according to project-specific hydraulic requirements. Electric motor, diesel engine and complete fire pump set configurations are available for different system designs and local fire code compliance.



Each pump is performance tested before shipment, and technical documentation, dimensional drawings and selection support can be provided for project evaluation.

product-750-750
Parameter Specification
Product Type Single Stage Vertical Inline Centrifugal Fire Pump
Pump Model XBD-TSL
Installation Vertical / Inline
Flow Rate 5 – 125 L/s
Head 32 – 160 m
Motor Power 4 – 160 kW
Speed 2900 rpm
Drive Type Electric Motor
Pump Material Cast Iron
Connection DN50 – DN200 / Flange
Voltage 380 V / 50 Hz / Customized
Application Fire Protection / Building / Industrial / Municipal
Certification Available



Advantages of the High Head Vertical Fire Pump



High-Head Vertical In-Line Design

The vertical in-line structure with coaxial motor mounting delivers heads up to 150 m from a compact footprint, providing sufficient pressure for high-rise buildings up to 50+ stories and long-distance fire water delivery without requiring a separate pump room extension. The direct pipeline installation eliminates complex piping layouts and reduces civil engineering costs.

Stable High-Pressure Performance

The optimized impeller and volute design produces a flat head-capacity curve, maintaining stable discharge pressure across the full operating range from zero to rated flow. This ensures that sprinklers and hydrants on upper floors receive consistent pressure regardless of demand fluctuations, meeting NFPA 20 non-overloading requirements at every duty point.

Space-Saving and Quiet Operation

The pump installs directly onto the pipeline with no need for a concrete foundation, reducing floor space by over 60% compared with horizontal fire pumps. The dynamically balanced rotor assembly and rigid cast iron casing keep noise below 60 dB(A) at 1 m and vibration below 2.8 mm/s, making it suitable for installation in occupied buildings, hospitals and commercial facilities where noise control is critical.

Reliable Seal and Easy Maintenance

Standard silicon carbide mechanical seal provides zero-leakage operation with service life over 8,000 hours, and the back-pull-out design allows impeller, seal or bearing replacement without disconnecting suction and discharge piping, reducing maintenance downtime to under one hour. Dual-pump duty/standby arrangements, stainless steel wetted parts and OEM customization are available to match project-specific requirements.



  • Through mandatory certification of 3CF and special testing for high lift working conditions, national standards, and authoritative quality traceability;
  • The motor is equipped with multiple protections for overload, phase loss, and overheating, making it less prone to damage under high load operation and ensuring a full safety factor;
  • Vertical structure with stable center of gravity, low vibration and noise, suitable for places with requirements for operating environment;
