Products Description

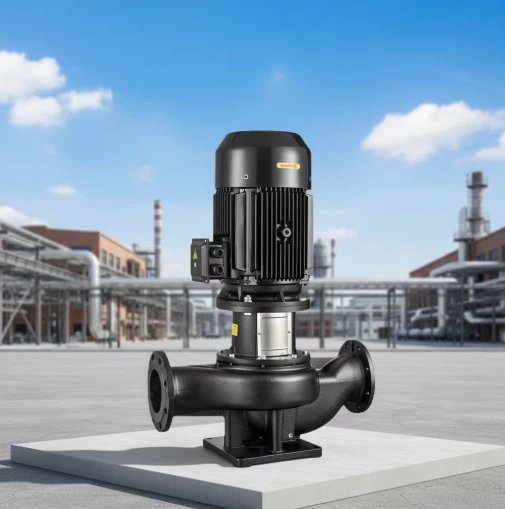

★ The TD Single Stage Vertical Pipeline Circulation Pump is a centrifugal circulation pump designed for reliable water circulation in HVAC and water supply systems. Its compact vertical structure helps reduce installation space while providing stable flow and pressure for building heating, cooling, industrial water circulation, and municipal water transfer applications.
★ With flow rates from 4 to 750 m³/h and heads from 4.5 to 108 m, the pump can be configured according to project‑specific hydraulic requirements. Standard motor, high‑temperature resistant motor and complete pump set configurations are available for different system designs and local requirements南方泵业.
★ Each pump is performance tested before shipment, and technical documentation, dimensional drawings and selection support can be provided for project evaluation.
| Parameter | Specification |
| Product Type | Vertical Inline Centrifugal Pump |
| Pump Model | TD Series |
| Installation | Vertical / Inline |
| Flow Rate | 8‑900 m³/h |
| Head | 9‑83 m |
| Motor Power | 1.1‑200 kW |
| Speed | 1450/1480/2900 rpm |
| Drive Type | Electric Motor |
| Pump Material | Cast Iron / Stainless Steel optional |
| Seal Type | Mechanical Seal |
| Voltage | 220V / 380V, Customized |
| Frequency | 50/60Hz |
| Protection Class | IP55 |
| Max Working Pressure | 1.6MPa PN16 |
| Application | HVAC, Water Supply, Industrial & Municipal |
| Certification | ISO / CE |
Technical Advantages
Compact vertical inline structure,saves floor space, easy for pipeline installation.
High‑efficiency hydraulic design, stable performance, low noise and low vibration during operation.
Mechanical seal, reliable sealing performance, less leakage and long service life.
Optional stainless steel wetted parts, good corrosion resistance for different medium.
IP55 motor with F‑class insulation, strong adaptability for harsh working environment.
Supports one‑standby‑one dual‑pump configuration, multiple protection to ensure system continuous running.
Complete model range, wide flow & head coverage to meet diversified project demands.
OEM & customized service available, strictly performance testing before delivery.
